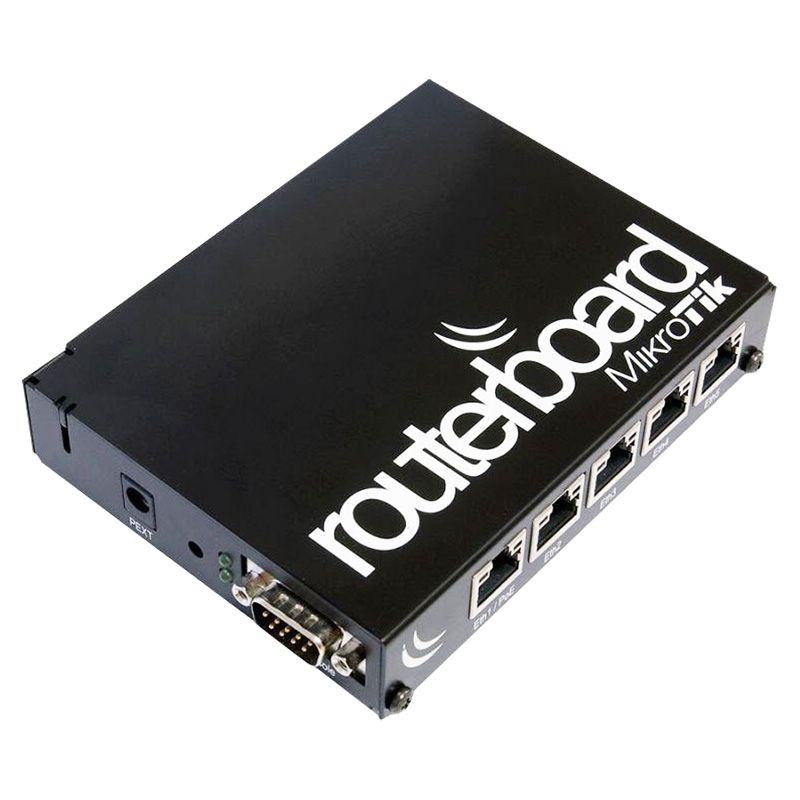

Mikrotik Router BOARD รุ่น RB450Gx4-SET

พร้อมส่ง
รหัสสินค้า
RB450Gx4-SET
฿4,440.00
รายละเอียดโดยย่อ
  • RB450Gx4-SET
Mikrotik Router BOARD รุ่น RB450Gx4-SET
Mikrotik Router BOARD รุ่น RB450Gx4-SET

RB450Gx4-SET



- อุปกรณ์ Router รองรับ 70+ ผู้ใช้งาน รองรับเน็ต 200-400 Mbps มาพร้อมด้วย 5 กิกะบิทพอร์ท 1000 Mbps + รับไฟที่พอร์ท #1 แบบ 802.3af/at และส่งไฟออกที่พอร์ท #5 แบบ Passive PoE up to 57V + รองรับการทำงาน Load Balancing, HotSpot และ VPN Server เหมาะสำหรับสำนักงานขนาดเล็ก (MikroTik RouterOS, Level5)
* CPU QUAD-CORE IPQ-4019 716MHz + 1GB DDR3 SDRAM

- ใช้สำหรับแชร์อินเทอร์เน็ตความเร็วสูงให้แก่ลูกข่าย ผ่านระบบแลน

- รองรับการทำงาน Load Balanced เชื่อมต่ออินเทอร์เน็ตได้มากกว่า 2 เส้นพร้อมกัน

- รองรับการทำ HotSpot Gateway สร้างรหัสผู้ใช้งาน

- รองรับการทำงาน IPSec/PPTP VPN Router สำหรับเชื่อมต่อ VPN ระหว่างสาขา

- รองรับการเชื่อมต่อ Mobile PPTP VPN เพื่อเข้ามาใช้งานภายในสำนักงาน

- รองรับการควบคุมความเร็วในการใช้งานอินเทอร์เน็ตของแต่ละผู้ใช้งาน

- 5 กิกะบิทพอร์ท 10/100/1000 Mbps แบบ RJ-45 สำหรับเชื่อมต่อระบบแลน สามารถใช้งานแบบ Load Balanced หรือปรับใช้เป็น LAN พอร์ทปกติ

- รองรับบัญชีผู้ใช้งาน 70+ บัญชี (สูงสุด 500 บัญชี) + สามารถปรับปรุง แก้ไข เปลี่ยนแปลงหน้า Login Portal ได้ตามความต้องการโดยใช้ภาษา HTML สามารถใส่โลโก้หอพัก โรงแรม สถานศึกษา หรือโฆษณาสินค้าได้อย่างสะดวกสบาย



ข้อมูลทางเทคนิค

Product code RB450Gx4
Architecture ARM 32bit
CPU IPQ-4019
CPU core count 4
CPU nominal frequency 716 MHz
Dimensions 90 x 115 mm.
License level 5
Operating System RouterOS
Size of RAM 1 GB
Storage size 512 MB
Storage type NAND
Tested ambient temperature -40°C to 70°C
Suggested price $99.00
PoE in 802.3af/at
PoE out Passive PoE
PoE in input Voltage 12-57 V
Number of DC inputs 3 (PoE-IN, DC jack)
DC jack input Voltage 10-57 V
Max out per port output (input > 30 V) 500 mA
Max out per port output (input < 30 V) 500 mA
Max total out (A) 500 mA
Max power consumption 16 W
Max power consumption without attachments 4 W
10/100/1000 Ethernet ports 5
Memory card type microSD
Serial port RS232
PCB temperature monitor Yes
Voltage Monitor Yes



Ethernet test results

RB450Gx4 IPQ-4019 1G all port test
Mode Configuration 1518 byte 512 byte 64 byte
kpps Mbps kpps Mbps kpps Mbps
Bridging none (fast path) 162,5 1973.4 469,9 1924.7 1482,6 759.1
Bridging 25 bridge filter rules 162,5 1973.4 339,4 1390.2 344 176.1
Routing none (fast path) 162,5 1973.4 469,9 1924.7 1452,6 743.7
Routing 25 simple queues 162,5 1973.4 468,3 1918.2 473,8 242.6
Routing 25 ip filter rules 162,5 1973.4 235,3 963.8 231,3 118.4

IPsec test results

RB450Gx4 IPQ-4018 IPsec throughput
Mode Configuration 1400 byte 512 byte 64 byte
kpps Mbps kpps Mbps kpps Mbps
Single tunnel AES-128-CBC + SHA1 37.9 424.5 59 241.7 61.6 31.5
256 tunnels AES-128-CBC + SHA1 36 403.2 38.5 157.7 39.8 20.4
256 tunnels AES-128-CBC + SHA256 36 403.2 38.5 157.7 39.8 20.4
256 tunnels AES-256-CBC + SHA1 34.4 385.3 37.9 155.2 39.8 20.4
256 tunnels AES-256-CBC + SHA256 34.4 385.3 37.9 155.2 39.8 20.4
