Mikrotik Router BOARD รุ่น RB1100AHx4
รายละเอียดโดยย่อ
- RB1100AHx4
RB1100AHx4

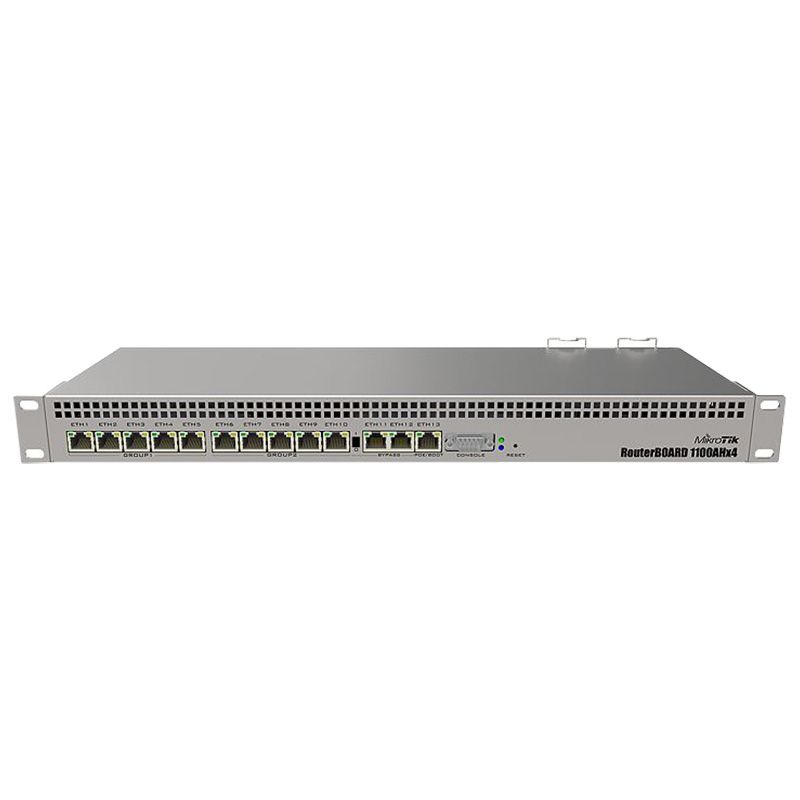

- RB1100AHx4 มี 13 พอร์ท Gigabit Ethernet 10/100/1000
- ตัวอุปกรณ์รองรับการทำงานหนักเหมาะสำหรับระบบเครือข่ายขนาดกลางถึงใหญ่ มี RAM 1GB
- รองรับการทำงานหนักอย่างเช่น IPSec, Load balance, hotspot gateway, Log, หรือเก็บ Auto Script ต่างๆ รองรับ throughput สูงสุดถึง 7.5Gbps
ข้อมูลทางเทคนิค
| Product code | RB1100x4 |
| Architecture | ARM 32bit |
| CPU | AL21400 |
| CPU core count | 4 |
| CPU nominal frequency | 1.4 GHz |
| Dimensions | 444 x 148 x 47 mm |
| License level | 6 |
| Operating System | RouterOS |
| Size of RAM | 1 GB |
| Storage size | 128 MB |
| Storage type | NAND |
| Tested ambient temperature | -40°C to 70°C |
| Suggested price | $299.00 |
| PoE in | 802.3af/at |
| PoE in input Voltage | 20-57 V |

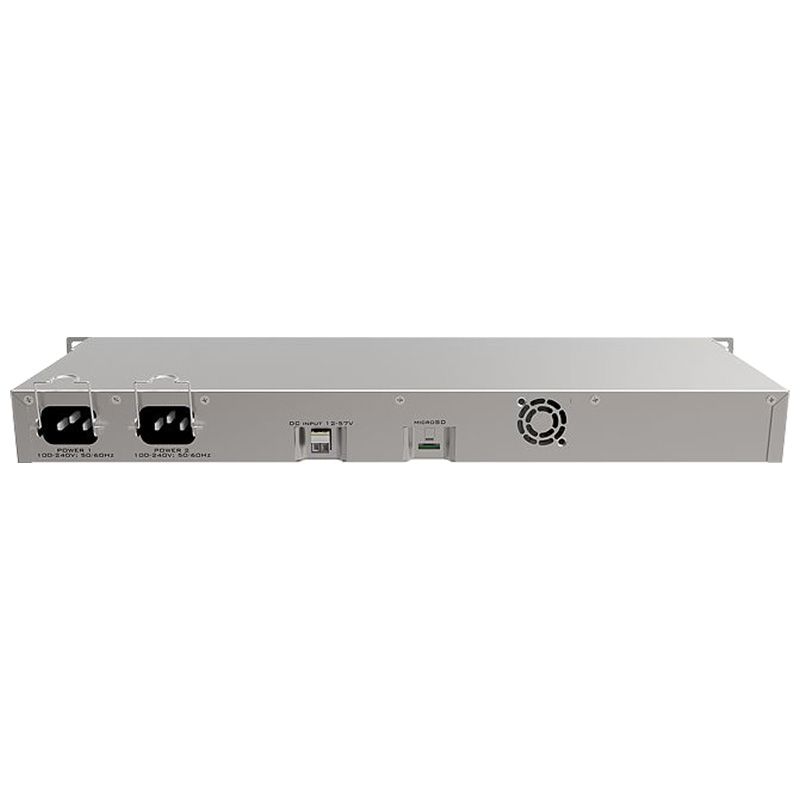

| Number of AC inputs | 2 |
| AC input range | 100-240 |
| Number of DC inputs | 2 (2-pin terminal, PoE-IN) |
| 2-pin terminal input Voltage | -48, 12-57 V |
| Max power consumption | 20 W |
| 10/100/1000 Ethernet ports | 13 |
| Memory card type | microSD |
| Memory Cards | 1 |
| Serial port | RS232 |
| Current Monitor | Yes |
| PCB temperature monitor | Yes |
| Voltage Monitor | Yes |
| Mode button | Yes |
Ethernet test results
| RB1100x4 | AL21400 1G all port test | ||||||
| Mode | Configuration | 1518 byte | 512 byte | 64 byte | |||
| kpps | Mbps | kpps | Mbps | kpps | Mbps | ||
| Bridging | none (fast path) | 606.5 | 7,365.3 | 1,736.4 | 7,112.3 | 5,509.7 | 2,821.0 |
| Bridging | 25 bridge filter rules | 606.5 | 7,365.3 | 1,107.8 | 4,537.5 | 1,153.2 | 590.4 |
| Routing | none (fast path) | 606.5 | 7,365.3 | 1,736.4 | 7,112.3 | 5092.3 | 2,607.3 |
| Routing | 25 simple queues | 606.5 | 7,365.3 | 933.6 | 3,824.0 | 960.3 | 491.7 |
| Routing | 25 ip filter rules | 543.7 | 6,602.7 | 561.8 | 2,301.1 | 564.6 | 289.1 |
IPsec test results
| RB1100x4 | AL21400 IPsec throughput | ||||||
| Mode | Configuration | 1400 byte | 512 byte | 64 byte | |||
| kpps | Mbps | kpps | Mbps | kpps | Mbps | ||
| Single tunnel | AES-128-CBC + SHA1 | 140.8 | 1577.0 | 141.2 | 578.4 | 139.9 | 71.6 |
| 256 tunnels | AES-128-CBC + SHA1 | 192.7 | 2158.2 | 200.5 | 821.2 | 203.4 | 104.1 |
| 256 tunnels | AES-128-CBC + SHA256 | 192.4 | 2154.9 | 200.5 | 821.2 | 203.4 | 104.1 |
| 256 tunnels | AES-256-CBC + SHA1 | 180.0 | 2016.0 | 188.2 | 770.9 | 190.3 | 97.4 |
| 256 tunnels | AES-256-CBC + SHA256 | 180.0 | 2016.0 | 188.2 | 770.9 | 190.3 | 97.4 |
| 256 tunnels | AES-128-GCM | 192.7 | 2158.2 | 202.2 | 828.2 | 203.4 | 104.1 |
