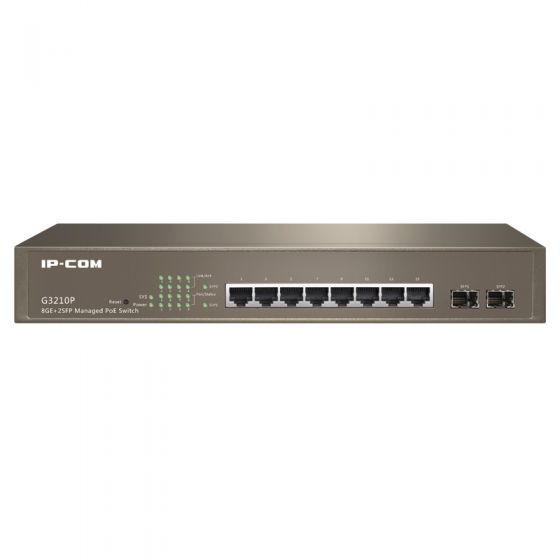

IP-COM Swicth รุ่น G3210P

สินค้าหมด
Only 0 left
รหัสสินค้า
G3210P
฿6,410.00
รายละเอียดโดยย่อ

G3210P

IP-COM Swicth รุ่น G3210P
IP-COM Swicth รุ่น G3210P IP-COM Swicth รุ่น G3210P IP-COM Swicth รุ่น G3210P

IP-COM Swicth รุ่น G3210P

- G3210P, IP-COM 8G + 2SFP Managed PoE Switch เหมาะสำหรับการเดินสายไร้สาย Gigabit ระยะไกลและเครือข่ายการตรวจสอบ HD



ข้อมูลทางเทคนิค

Model G3210P
Copper Ports 8 10/100/1000Base-T RJ-45 Auto-MDI/MDI-X ports
SFP/mini-GBIC Slots 2 1000Base-SX/LX/BX SFP interfaces (Port-9 and Port-10)
Compatible with 100Base-FX SFP
Switch Architecture Store-and-Forward
Throughout 14.88Mpps
Address Table 8K entries, automatic source address learning and aging
Share Data Buffer 1.49Mpps
Flow Control IEEE 802.3x Pause Frame for Full-Duplex Back pressure for Half-Duplex
Jumbo Frame 9Kbytes
Reset Button < 5 seconds: System reboot
> 5 seconds: Factory Default
Dimension  294*178.8*44 mm(W x D x H), 1U hig
Weight 1.8kg
LED Power,PoE-Max
Link/Act per Gigabit port
PoE In-Use for Port-1~ 8
Power Supply 130W
PoE Standard IEEE 802.3af / at
PoE Power Supply Type End-Span
PoE Power Output Per Port 51V DC
Max. 40 Watts
Power Pin Assignment 1/2(+), 3/6(-)
PoE Power Budget 115W
PoE Ability Number of PD @ 7 Watts 8
Number of PD @ 15.4 Watts 8
Number of PD @ 30.8 Watts 4
Basic Management Interfaces Telnet, Web Browser, SNMPv1, v2c
Port configuration Port disable / enable
Auto-Negotiation 10/100/1000Mbps full and half duplex mode selection
Flow Control disable / enable
Bandwidth control on each port
Power saving mode control
Port Status Display each port&rsquo;s speed duplex mode, link status, Flow control status,Auto negotiation status, trunk status
Port Mirroring TX / RX / Both
Many to 1 monitor
VLAN 802.1Q Tagged Based VLAN, up to 64 VLAN groups
Q-in-Q tunneling
Private VLAN Edge (PVE)
MAC-Based VLAN
Protocol-Based VLAN
Voice VLAN
Up to 10 VLAN groups, out of 160 VLAN IDs
Link Aggregation IEEE 802.3ad LACP / Static Trunk Supports 5 groups of 10-Port trunk support
QoS Traffic classification based, Strict priority and WRR
8-Level priority for switching
Port Number
802.1p priority
802.1Q VLAN tag
DSCP/TOS field in IP Packet
IGMP Snooping IGMP (v1/v2) Snooping, up to 200 multicast Groups
IGMP Querier mode support
Regulation Compliance FCC,CE,RoHS
Operating Temperature 0℃~40℃ (32℉~104℉);
Storage Temperature -40℃~70℃ (-40℉~158℉)
Operating Humidity 10%~90% non-condensing
Storage Humidity 5%~90% non-condensing)
