IP-COM Outdoor Point to Point รุ่น AP625
รายละเอียดโดยย่อ
AP625

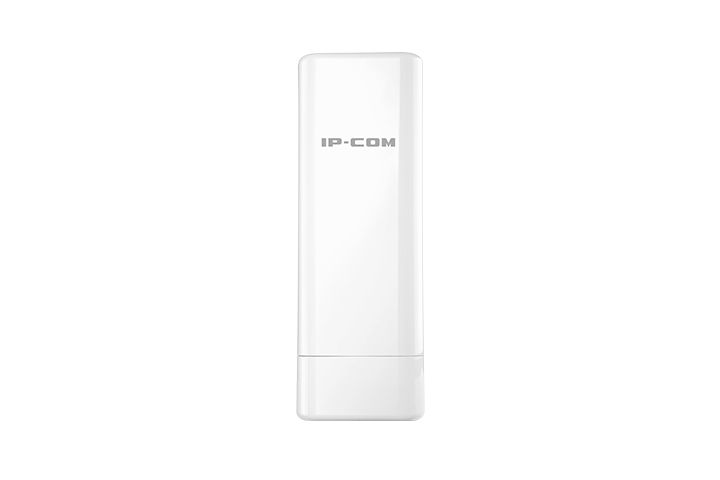

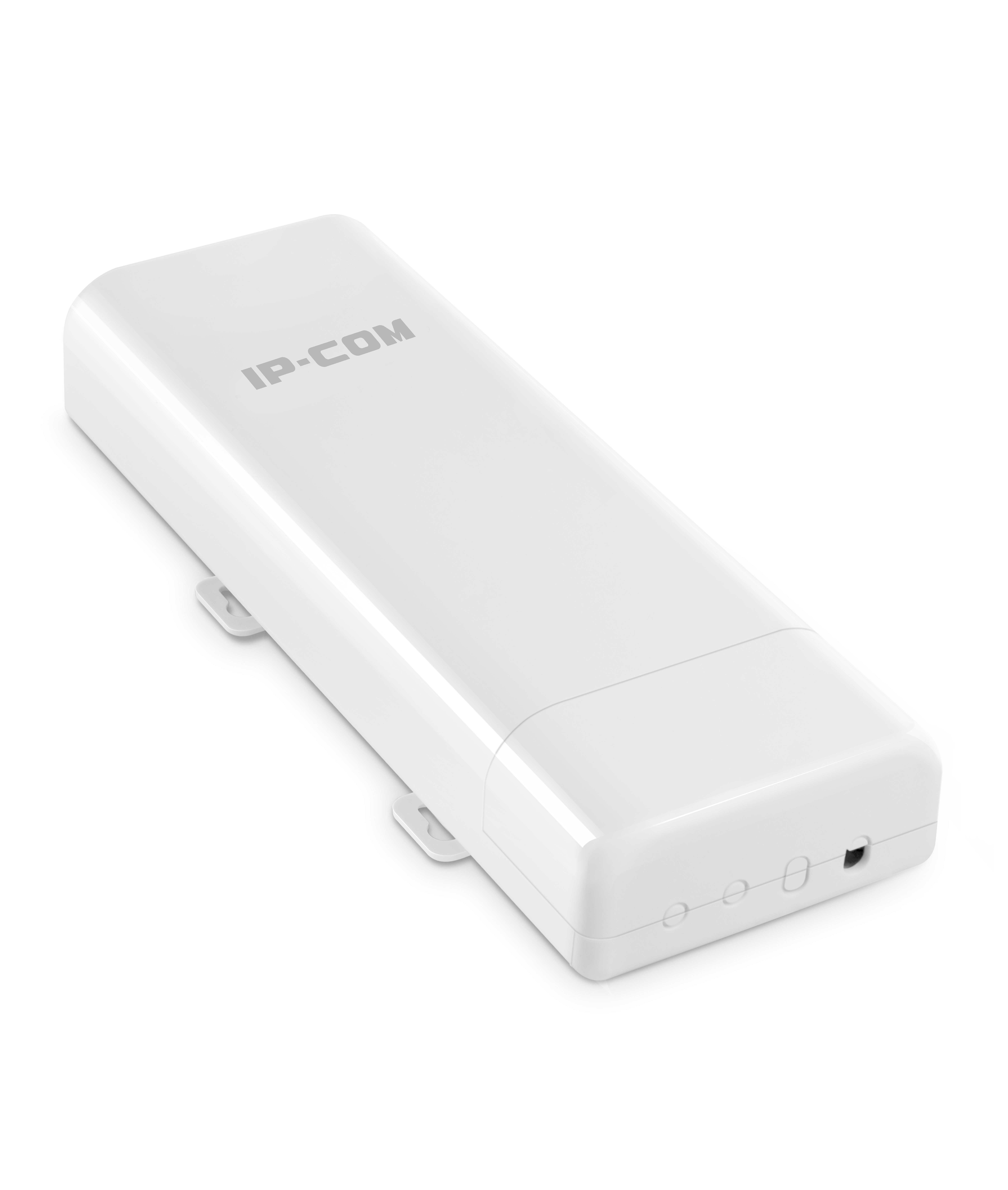

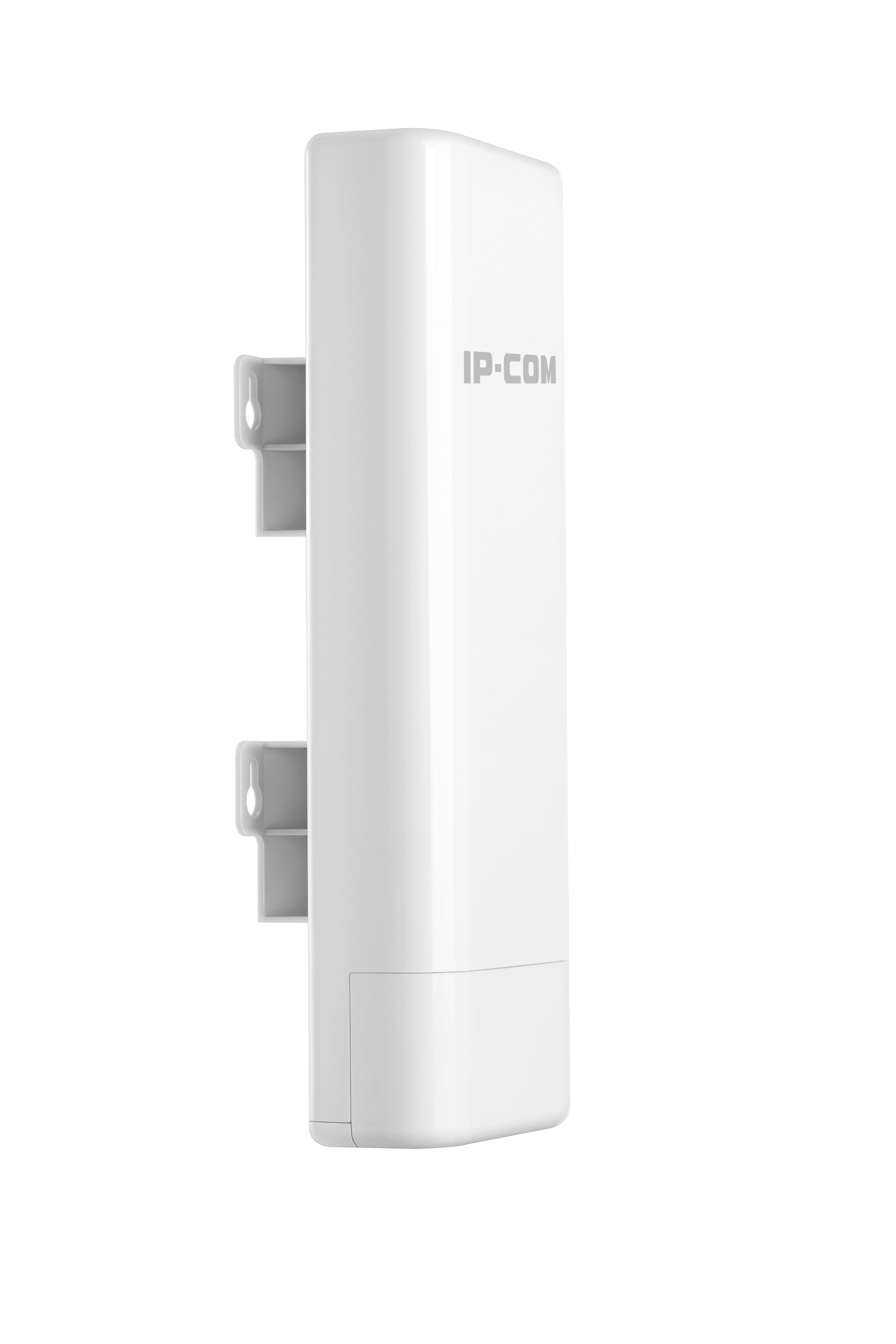

IP-COM Outdoor Point to Point รุ่น AP625
- AP625 5GHz 433Mbps กลางแจ้ง Point to Point CPE ได้รับการออกแบบเพื่อแก้ปัญหา WISP CPE และโซลูชั่นเครือข่ายไร้สายทางไกลสำหรับการเฝ้าระวังวิดีโอและการส่งข้อมูล
ข้อมูลทางเทคนิค
| Model | AP625 |
| Dimensions | 270*94.86*67.5mm |
| Frequency Range | 5GHz |
| Maximum wireless speed | 433Mbps |
| CPU Processor | Broadcom 900MHz |
| GND Terminal | 1 |
| Interface | 1*GE PoE/WAN/LAN port |
| Mode Switch | STA: The device only work in Station mode Off: The device work on AP/Station/Universal Repeater/WISP/Router mode AP: The device only work in AP mode |
| Button | Reset: Press 15 seconds or more to restore to default settings Bridge: Press 3-7 seconds and release it to bridge uplink AP |
| Antennas | 16dbi Directional Antenna |
| Antenna Beamwidth | Horizontal: 30° Vertical: 15° |
| Maximum Power Consumption | 9W |
| Lightning Protection | 6KV |
| Waterproof Level | IP64 |
| LED indicator | LAN,LED1,LED2,LED3 |
| Power Supply | 24v 0.5A PoE Injector |
| Operating mode | AP/Station/Universal Repeater/WISP/Router |
| Compliant Standards | IEEE 802.11ac/n/a |
| Wireless Features | Enable/Disable Wireless Radio SSID Hidden Wireless Client isolation Sensitivity Threshold WMM Capable APSD Capable Wireless Access Control Wireless Client list |
| Wireless Security | 64/128 WEP,WPA-PSK,WPA2-PSK,WPA&WPA2-PSK,WPA,WPA2 |
| Transmission Power | Adjustable power by 1dBm |
| Receiver sensitivity | MCS0: -90dbm MCS7: -72dbm |
| DHCP Server | DHCP Server Clients list |
| VPN Pass-Through | PPTP,L2TP |
| Remote Web access | Support |
| Schedule Reboot | Support |
| Page Timeout | Support |
| Ping Watchdog | Support |
| Speed Test | Support |
| Dyndns | noip, dyndns.org |
| Network Diagnoses | Ping, Traceroute, Signal Scan |
| Management Tool | Time&Date Setting System Log Firmware update Backup/Restore Configuration Username Managerment |
| Managed By Controller | PC Software -- CPE Controller |
| Package Contents | 5G 433Mbps outdoor Point to Point CPE AP625 Power Adapter Ethernet cable Two Plastic Staps Quick Installation Guide |
| Operating Temperature | -20℃ ~ 55℃ |
| Storage Temperature | -40℃ ~ 70℃ |
| Operating Humidity | 10%~90% non-condensing |
| Storage Humidity | 10%~90% non-condensing |
| Default login IP | 192.168.2.1 |
| Default Login Username | admin |
| Default Login Password | admin |
| Certifications | FCC/CE/RoHS |
