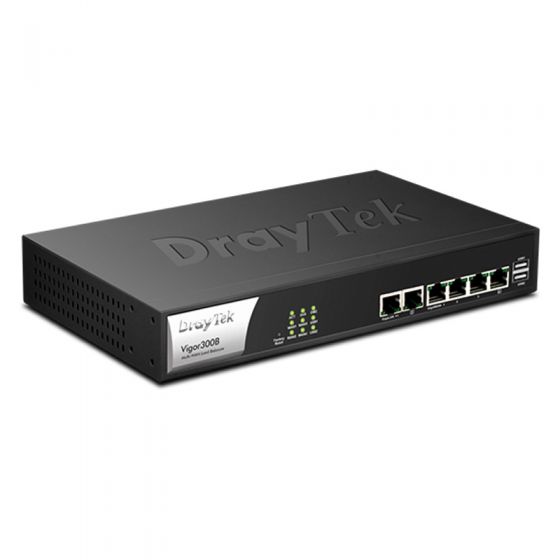

DrayTek Router รุ่น Vigor300B
รายละเอียดโดยย่อ
Vigor300B
DrayTek Router รุ่น Vigor300B
- Vigor300B เป็นเราเตอร์บรอดแบนด์แบบ Quad-WAN load balancing ที่ทำงานบนระบบ linux มีพอร์ต 4x Gigabit Ethernet WAN และพอร์ต USB แบบมัลติฟังก์ชั่น 2 พอร์ตซึ่งสามารถเพิ่มการเชื่อมต่อเซลลูลาร์ 3G / 4G ซึ่งให้ปริมาณงาน WAN สูงสุด 1 กิกะบิต
ข้อมูลทางเทคนิค
| WAN Port | 4x 100/1000Base-Tx, RJ-45 (WAN4 is configurable as physical DMZ port) |
| LAN Port | 2x 100/1000Base-Tx, RJ-45 (LAN2 is configurable as monitor port or physical DMZ port) |
| USB Port | 2x USB 2.0 for 3G/4G/LTE USB modem, storage, printer or thermometer |
| NAT Throughput | 900 Mbps |
| NAT Sessions | 100,000 |
| IPv4 | PPPoE, DHCP, Static IP, PPTP |
| IPv6 | Link Local, Static, PPP, DHCP IA NA, DHCP IA PD |
| Multi-VLAN | Yes |
| 3G/4G/LTE WAN with USB modem | Yes |
| Outbound Load Balancing | IP-based, Session-based |
| Inbound Load Balancing | Yes |
| WAN Failover | Yes |
| Connection Detection | ARP, Ping, HTTP |
| Dynamic DNS | Yes |
| DrayDDNS | Yes |
| 802.1q VLAN | Yes |
| Max. Number of VLAN | 4 |
| Number of LAN Subnet | 4 |
| DHCP Server | Multiple IP Subnet, Custom DHCP Options, Bind-IP-to-MAC |
| PPPoE Server | Yes |
| Port Mirroring | Yes |
| Local DNS Server | Yes |
| Conditional DNS Forwarding | Yes |
| Web Portal | Yes |
| Web Portal Authentication | Local User Profile, Guest Profile, RADIUS, LDAP, SMS PIN |
| Routing | IPv4 Static Routing, IPv6 Static Routing, Inter-VLAN Routing, RIP, BGP, OSPF |
| Policy-based Routing | Protocol, IP Address, Port, Domain, Country |
| DNS Security (DNSSEC) | Yes |
| GVRP | Yes |
| Proxy | IGMP, LAN ARP, WAN ARP |
| SMB File Sharing | (Requires external storage) |
| NAT | Port Redirection, Open Ports, Port Triggering, DMZ Host, UPnP |
| ALG (Application Layer Gateway) | SIP, FTP, H.323 |
| VPN Pass-Through | PPTP, L2TP, IPsec |
| IP-based Firewall Policy | Yes |
| Content Filtering | Application, URL Keyword, File Extension, Web Category*, QQ Filter (*: subscription required) |
| DoS Attack Defense | Yes |
| IP-based Bandwidth Limit | Yes |
| IP-based Session Limit | Yes |
| QoS (Quality of Service) | TOS, DSCP, 802.1p, IP Address, Service Type |
| Hardware QoS | Yes |
| VoIP Prioritization | Yes |
| Local Service | HTTP, HTTPS, Telnet, SSH, TR-069 |
| Config File Export & Import | Yes |
| Firmware Upgrade | TFTP, HTTP, TR-069 |
| 2-Level Administration Privilege | Yes |
| Access Control | Access List, Brute Force Protection (Fail to Ban), Access Barrier |
| Syslog | Yes |
| Notification Alert | SMS, E-mail |
| SNMP | v2, v2c, v3 |
| Managed by VigorACS | Yes |
| Central AP Management | 30 VigorAP |
| Central Switch Management | 10 VigorSwitch |
| 19" Rack Mountable | Mouting Kit Included |
| Power Supply | DC 12V @ 1.5A |
| Max. Power Consumption | 19 watts |
| Dimension | 273 mm x 171 mm x 45 mm |
| Weight | 1.35 kg |
| Max. Power Consumption | 19 watts |
| Operating Temperature | 0 to 45°C |
| Storage Temperature | -10 to 55°C |
| Operating Humidity (non-condensing) | 10 to 90% |
