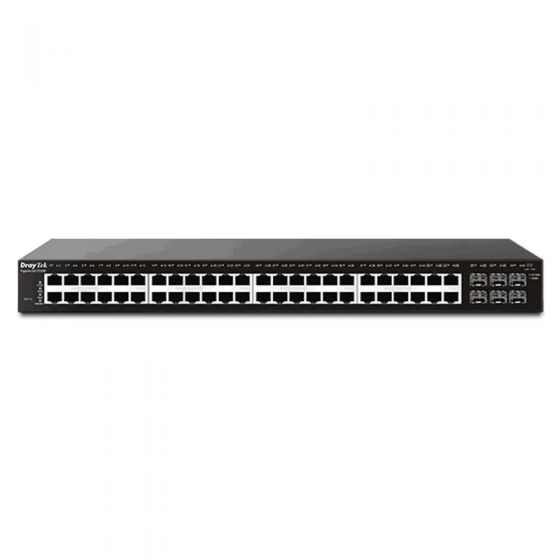

DrayTek PoE Swicth รุ่น VigorSwitch P2500
รายละเอียดโดยย่อ
VigorSwitch P2500
DrayTek PoE Swicth รุ่น VigorSwitch P2500
- DrayTek VigorSwitch P2500 เป็นสวิตช์ Gigabit PoE ที่มีการจัดการ Layer 2 มีพอร์ต 44x Gigabit Ethernet PoE / PoE + พร้อมงบประมาณด้านพลังงาน 405 วัตต์ เหมาะสำหรับเครือข่ายธุรกิจมีแผนการปรับใช้ PoE ขนาดใหญ่
ข้อมูลทางเทคนิค
| LAN Port | 44x 10/100/1000Base-T, RJ-45 4x Combo 10/100/1000Base-T / SFP 2x 100/1000Mbps Fiber SFP |
| Console Port | 1x Gigabit Ethernet |
| Slide Switch | 1 (Port/PoE LED) |
| Factory Reset Button | 1 |
| PoE Capable Ports | 44 |
| PoE Standards | PoE/PoE+(802.3af/802.3at), Type mode A |
| PoE Power Budget | 405 watts |
| Power Limit | Yes |
| Scheduled On/Off | Yes |
| Power Cycle on Port | Manual, Ping Watchdog |
| Buffer Size | 12 Mbit |
| Switching Capacity | 100 Gbps |
| Forwarding Rate | 74.4 Mpps (64 bytes) |
| MAC Address Table | 16k |
| Jumbo Frame | Up to 12KB |
| IP Version | IPv4, IPv6 |
| Ethernet Standards | 802.3af PoE 802.3at PoE+ 802.3 10Base-T 802.3u 100Base-T 802.3ab 1000Base-T 802.1q Tag-based VLAN 802.3x Flow Control 802.3 Auto-Negotiation 802.1p Class of Service 802.1d STP 802.1w RSTP 802.1s MSTP 802.3ad LACP 802.1x Port Access Control 802.1AB LLDP 802.3az EEE |
| Max.Number of VLAN | 256 |
| VLAN Type | 802.1q Tag-based MAC-based 802.1v Protocol-Based Management VLAN Voice VLAN Surveillance VLAN |
| Port Isolation (Protected Port) | Yes |
| GVRP | Yes |
| Q-in-Q | Basic |
| Discovery | Yes |
| Surveillance Topology | Yes |
| Real-Time Video Streaming | Yes |
| ONVIF Device Maintenance | Device Info, Reset Factory Default, Time Settings, Reboot |
| Number of QoS Queues | 8 |
| Queue Scheduling | SPQ, WRR |
| CoS (Class of Service) | 802.1p CoS, DSCP, CoS-DSCP, IP Precedence |
| Rate Limit & Shaping | Yes |
| Access Control List | MAC, IPv4, IPv6 |
| Storm Control | Broadcast, Unknown Multicast, Unknown Unicast |
| DoS Defense | Yes |
| 802.1x Port Access Control | Yes |
| IP Source Guard | Yes |
| IP Conflict Detection | Yes |
| IP Conflict Prevention | Yes |
| Loop Protection | Yes |
| Dynamic ARP Inspection | Yes |
| DHCP Snooping with Option 82 | Yes |
| Max. Number of Group | 16 |
| Max. Number of Member in Each Group | 8 |
| Type | Static, LACP |
| Traffic Load Balancing | MAC Address, IP/MAC Address |
| IGMP Snooping | v2, v3 (BISS) |
| IGMP Querier | v2, v3 (BISS) |
| MLD Snooping | v1, v2 |
| Max. Number of Multicast Group | 256 |
| Group Throttling | Yes |
| Group Filtering | Yes |
| MVR (Multicast VLAN Registration) | Yes |
| Web Interface | HTTP, HTTPS |
| Command Line Interface | Telnet, SSH |
| OpenVPN Client | Certificate-based authentication |
| User Authentication | Local Database, RADIUS, TACACS+ |
| SNMP | v1, v2c, v3 |
| RMON Group | 1, 2, 3, 9 |
| LLDP | LLDP-MED, Media Endpoint Discovery Extension |
| Mail Alert | Port Status, Port Speed, System Restart, IP Conflict |
| Syslog | Yes |
| 2-Level Admin Privilege | Yes |
| Multiple Admin Accounts | Yes |
| Managed by VigorRouter SWM | Yes |
| Managed by VigorConnect | Yes |
| Managed by VigorACS 2 | Yes |
| Config File Export/Import | Yes |
| Dual Image | Yes |
| SNTP (Simple Network Time Protocol) | Yes |
| Diagnostics Tools | Port Mirroring, Ping, Cable Test, Fan Test |
| 19-inch Rack Mountable | Mouting Kit Included |
| Max. Power Consumption | 480 watts |
| Dimension (mm) | 440 x 330 x 44.5 |
| Weight | 5.31 kg (11.7 lb) |
| Ventilation | Variable-speed Fan |
| Operating Temperature | 0 to 45°C |
| Storage Temperature | -20 to 70°C |
| Operating Humidity | 10 to 90% non-condensing |
| Storage Humidity | 5 to 90% non-condensing |
