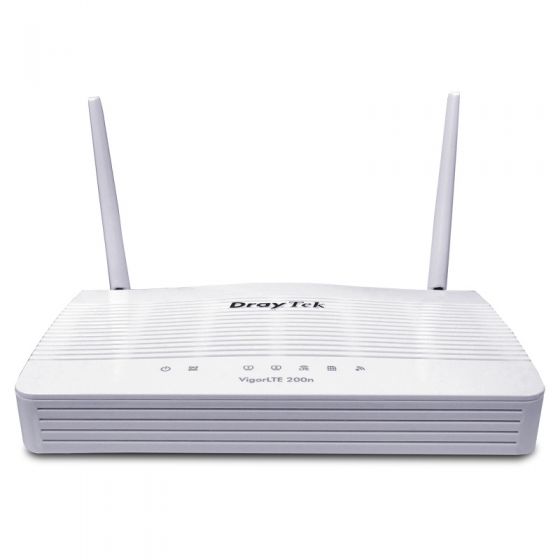

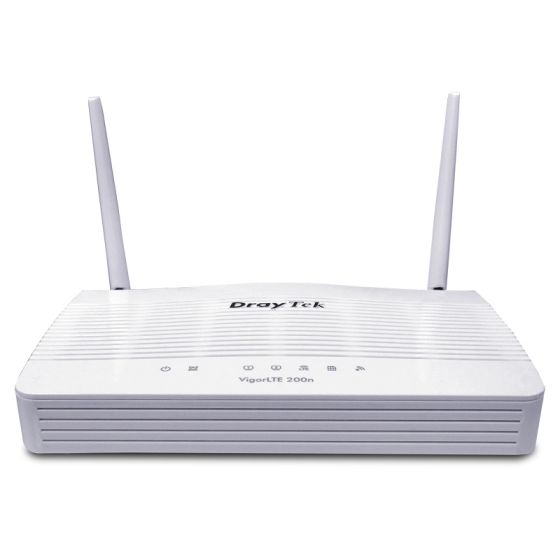

DrayTek LTE Router รุ่น VigorLTE 200n

- VigorLTE 200n เป็นเราเตอร์ Wi-Fi บรอดแบนด์ LTE สำหรับสมาร์ทโฮมหรือเครือข่ายธุรกิจขนาดเล็กที่มีโฮสต์ประมาณ 30 โฮสต์ อินเทอร์เฟซ WAN หลักคือบรอดแบนด์มือถือ LTE ซึ่งเหมาะสำหรับไซต์ที่ไม่มีโครงสร้างพื้นฐานโทรศัพท์พื้นฐานหรือสถานที่ที่ต้องการการเข้าถึงอินเทอร์เน็ตชั่วคราว

ข้อมูลทางเทคนิค

LAN/WAN Switchable Port	1x 10/100/1000Base-TX Ethernet, RJ-45 (LAN P2)
Fixed LAN Port	1x 10/100/1000Base-TX Ethernet, RJ-45
SIM Slot	2x Standard-Sized (1 SIM online at a time)
LTE Antenna	2x External Dipole Gain: 3 dBi
Wi-Fi Antenna	2x Internal PIFA Gain: 2 dBi for 2.4GHz
2.4G WLAN	802.11n 2x2 MIMO 300Mbps
NAT Throughput	300 Mbps
IPsec VPN Performance	50 Mbps (AES 256 bits)
SSL VPN Performance	25 Mbps
Max. Number of NAT Sessions	30,000
Max. Concurrent VPN Tunnels	2
Max. Concurrent OpenVPN + SSL VPN	2
LTE Category	4
Max. Data Rate	150 Mbps downlink, 50 Mbps uplink
FDD Band	1 (2100MHz), 3 (1800MHz), 7 (2600MHz), 8 (900MHz), 20 (800MHz)
WCDMA (3G) Band	1, 8
SMS Gateway	Learn More
For other band availability, please contact your local DrayTek distributor or us
IPv4	PPPoE, DHCP, Static IP
IPv6	PPP, DHCPv6, Static IP, TSPC, AICCU, 6rd, 6in4 Static Tunnel
LTE WAN Bridge	DHCP Client
Multi-VLAN/PVC
WAN Failover
Connection Detection	ARP, Ping
Dynamic DNS
DrayDDNS
WAN Budget
VLAN	802.1q Tag-based, Port-based
Max. Number of VLAN	8
Number of LAN Subnet	2
DHCP Server	Multiple IP Subnet, Custom DHCP Options, Bind-IP-to-MAC
Routing	IPv4 Static Routing, IPv6 Static Routing, RIPv2
Multicast	IGMP Proxy, IGMP Snooping & Fast Leave
LAN-to-LAN
Teleworker-to-LAN
Protocols	PPTP, L2TP, IPsec, L2TP over IPsec, SSL, IKEv2, IPsec XAuth, OpenVPN(Host to LAN)
User Authentication	Local, RADIUS, mOTP
IKE Authentication	Pre-Shared Key, X.509
IPsec Authentication	SHA-1, SHA-256, MD5
NAT-Traversal (NAT-T)
DrayTek VPN Matcher
NAT	Port Redirection, Open Ports, DMZ Host, UPnP
ALG (Application Layer Gateway)	SIP, RTSP, FTP, H.323
VPN Pass-Through	PPTP, L2TP, IPsec
IP-based Firewall Policy
Content Filtering	Application, URL, Web Features, Web Category*, DNS Keyword (*: subscription required)
DoS Attack Defense
Spoofing Defense
IP-based Bandwidth Limit
IP-based Session Limit
QoS (Quality of Service)	TOS, DSCP, 802.1p, IP Address, Port
Number of SSID	4 per radio band
Security Mode	WEP, WPA, WPA2, Mixed(WPA+WPA2)
Authentication	Pre-Shared Key, 802.1X
WPS	PIN, PBC
WDS	Bridge, Repeater
Access Control	Access List, Client Isolation, Hide SSID, Wi-Fi Scheduling
WMM
Local Service	HTTP, HTTPS, Telnet, SSH v2, TR-069, SMS Sending & Recieving
Config File Export & Import
Firmware Upgrade	TFTP, HTTP, TR-069
Access Control	Access List, Brute Force Protection
Notification Alert	SMS, E-mail
SNMP	v2, v2c, v3
Syslog
Managed by VigorACS
Central AP Management	2 VigorAP
Power Supply	DC 12V @ 1A
Max. Power Consumption	12 watts
Dimension	207mm x 131mm x 42mm
Weight	380g
Operating Temperature	0 to 45°C
Storage Temperature	-25 to 70°C
Operating Humidity (non-condensing)	10 to 90%
Certificate
