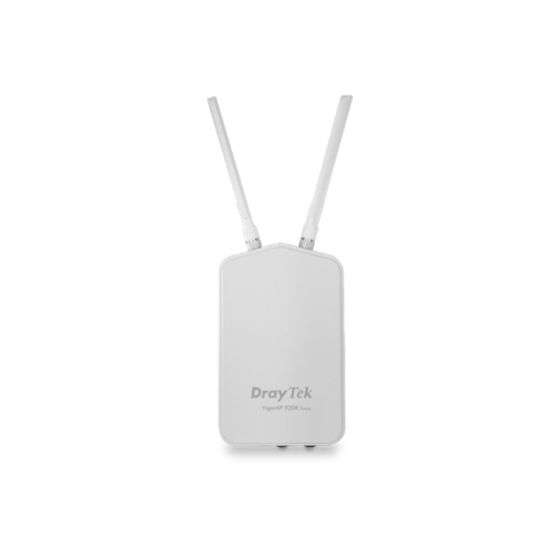

DrayTek Access Point รุ่น VigorAP 920RP
รายละเอียดโดยย่อ
Project
DrayTek Access Point รุ่น VigorAP 920RP
- DrayTek VigorAP 920R Series เป็นจุดเชื่อมต่อไร้สายแบบดูอัลแบนด์สำหรับสภาพแวดล้อมภายนอกอาคาร มีพอร์ต PoE Gigabit Ethernet หนึ่งพอร์ตเพื่อให้ใช้งานได้ง่ายที่กลางแจ้งและเคสที่ทนทานเพื่อทนต่อสภาวะที่ไม่เอื้ออำนวย
ข้อมูลทางเทคนิค
| LAN Port | 1x 10/100/1000Base-T Ethernet, RJ-45, PoE-In 1x 10/100/1000Base-T Ethernet, RJ-45, PoE-Out (model RP/RPD) |
| Antenna | 2x Dual-Band dipole External (Gain: 6 dBi for 5GHz, 3.5 dBi for 2.4GHz) 1x internal 12 dBi 5GHz Directional Patched (model RPD) |
| Built-In Sensor | Temperature & Humidity |
| Button | 1 x Factory Reset button |
| 2.4GHz Peak Speed | 400 Mbps |
| 5GHz Peak Speed | 867 Mbps |
| Max. Number of Concurrent Active Clients | 256 (128 per radio band) |
| 2.4GHz Standard | IEEE 802.11b/g/n 2x2 MIMO |
| 5GHz Standard | IEEE 802.11a/n/ac Wave 2 2x2 MU-MIMO |
| Operating Mode | AP, Mesh Root, Mesh Node, Range Extender |
| Roaming | AP-Assisted Roaming, PMK-Caching, Pre-Authentication |
| Airtime Fairness | |
| Band Steering | |
| Auto Channel Selection | |
| Max. Number of SSID | 8 (4 per radio band) |
| WDS | |
| Bandwidth Limit per Station | |
| Client Number Limit | Per radio, Per SSID |
| Connection Time Control | |
| WMM | |
| Security Mode | WPA3, WPA3/WPA2, WPA2, WPA2/WPA, OWE, WPA, WEP, None |
| Authentication | Personal, Enterprise |
| WPS | PIN, PBC |
| Hidden SSIDs | |
| MAC Address Filter | Up to 256 entries |
| Wireless Client Isolation | |
| Mobile Device Management | |
| Built-in RADIUS Server | |
| RADIUS Proxy | PEAP, EAP-TLS |
| DHCP | DHCP Server, DHCP, Client, DHCP Relay Agent |
| Static IP | |
| MAC Clone | |
| 802.1q VLAN | |
| Schedule | Auto-Reboot, Wi-Fi Up/Down, LED On/Off |
| Local Service | HTTP, HTTPS, Telnet |
| Configuration | Stand Alone, TR-069 (VigorACS), VigorRouter APM, VigorAP Mesh Root |
| Firmware Upgrade | HTTP, TFTP, TR-069 |
| Tools | Speed Test, AP Discovery, Statistics, DHCP Table, Interference Monitor |
| Notification Alert | |
| SNMP | v2, v2c, v3 |
| Syslog | |
| Managed by VigorConnect | |
| Managed by VigorACS | |
| Environment | Outdoor |
| Mounting | Wall Mount, Pole Mount |
| Power Method | 802.3af/at PoE 56V |
| Max. Power Consumption with PoE Output | 43.2 watts (model RPD) |
| Max. Power Consumption without PoE Output | 18 watts (model RPD) |
| Max. PoE Output | 30 watts (model RP/RPD) |
| Dimension | 255 mm x 160 mm x 80 mm |
| Weight | 1.2 kg |
| Operating Temperature | -40 to 70°C |
| Storage Temperature | -40 to 85°C |
| Operating Humidity | 5 to 95% non-condensing |
| Certificate | IP67    |
