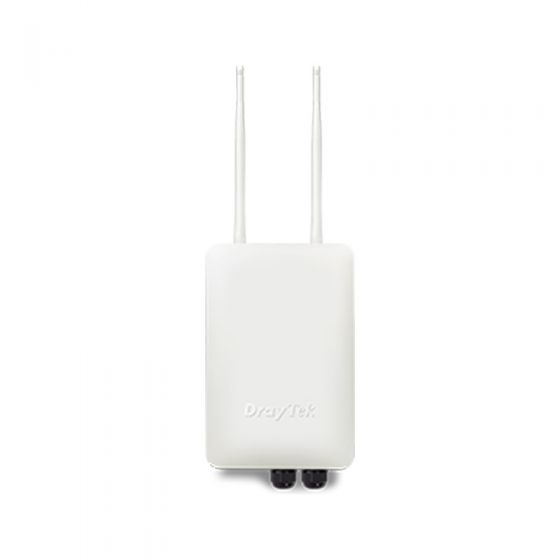

DrayTek Access Point รุ่น VigorAP 918R

- DrayTek VigorAP 918R Series เป็นจุดเชื่อมต่อไร้สายกลางแจ้งขนาดกะทัดรัด ให้ความเร็วรวมสูงถึง 1.3 Gbps และรองรับผู้ใช้งานมากกว่า 200 คน

ข้อมูลทางเทคนิค

LAN Port	1x 10/100/1000Base-T Ethernet, RJ-45, PoE-In 1x 10/100/1000Base-T Ethernet, RJ-45, PoE-Out (model RPD)
Antenna	2x Dual-Band dipole External (Gain: 5 dBi for 5GHz, 3.5 dBi for 2.4GHz) 1x internal 11 dBi 5GHz Directional Patched (model RPD)
Built-In Sensor	Temperature & Humidity
Button	1 x Factory Reset button
2.4GHz Peak Speed	400 Mbps
5GHz Peak Speed	867 Mbps
Max. Number of Concurrent Active Clients	256 (128 per radio band)
2.4GHz Standard	IEEE 802.11b/g/n 2x2 MIMO
5GHz Standard	IEEE 802.11a/n/ac Wave 2 2x2 MU-MIMO
Operating Mode	AP, Mesh Root, Mesh Node, Range Extender
Roaming	AP-Assisted Roaming, PMK-Caching, Pre-Authentication
Airtime Fairness
Band Steering
Auto Channel Selection
Max. Number of SSID	8 (4 per radio band)
WDS
Bandwidth Limit per Station
Client Number Limit	Per radio, Per SSID
Connection Time Control
WMM
Security Mode	WPA3, WPA3/WPA2, WPA2, WPA2/WPA, OWE, WPA, WEP, None
Authentication	Personal, Enterprise
WPS	PIN, PBC
Hidden SSIDs
MAC Address Filter	Up to 256 entries
Wireless Client Isolation
Mobile Device Management
Built-in RADIUS Server
RADIUS Proxy	PEAP, EAP-TLS
DHCP	DHCP Server, DHCP, Client, DHCP Relay Agent
Static IP
MAC Clone
802.1q VLAN
Schedule	Auto-Reboot, Wi-Fi Up/Down, LED On/Off
Local Service	HTTP, HTTPS, Telnet
Configuration	Stand Alone, TR-069 (VigorACS), VigorRouter APM, VigorAP Mesh Root
Firmware Upgrade	HTTP, TFTP, TR-069
Tools	Speed Test, AP Discovery, Statistics, DHCP Table, Interference Monitor
Notification Alert	E-mail
SNMP	v2, v2c, v3
Syslog
Managed by VigorConnect
Managed by VigorACS
Environment	Outdoor
Mounting	Wall Mount, Pole Mount
Power Method	802.3af/at PoE 56V
Max. Power Consumption with PoE Output	43.2 watts (model RPD)
Max. Power Consumption without PoE Output	18 watts (model RPD)
Max. PoE Output	12 watts (model RPD)
Dimension	243 mm x 161 mm x 72 mm
Weight	0.9 kg
Operating Temperature	-40 to 70°C
Storage Temperature	-40 to 85°C
Operating Humidity	5 to 95% non-condensing
Certificate
