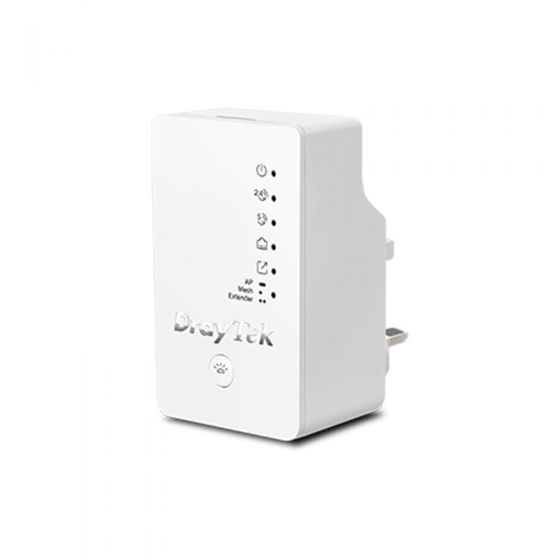

DrayTek Access Point รุ่น VigorAP 802

- VigorAP 802 เป็นจุดเชื่อมต่อไร้สายแบบดูอัลแบนด์ขนาดกะทัดรัดพิเศษออกแบบมาเพื่อขยายการครอบคลุม Wi-Fi

ข้อมูลทางเทคนิค

LAN Port	1x 10/100/1000M Base-T, RJ-45
Antenna	2x Internal PiFA Dual-Band Gain: 4.79 dBi for 5GHz, 3.35 dBi for 2.4GHz
Button	1x LED On/Off
2.4G Peak Speed	300 Mbps
5G Peak Speed	867 Mbps
Max. Number of Concurrent Active Clients	64 (32 per band)
2.4GHz Standard	IEEE 802.11b/g/n
5GHz Standard	IEEE 802.11a/n/ac
MIMO	2x2 (2-stream)
Operating Mode	AP, Mesh Node, Range Extender
Roaming	AP-Assisted Roaming, PMK-Caching, Pre-Authentication
Airtime Fairness
Band Steering
Auto Channel Selection
Max. Number of SSID	4 (2 per band)
WDS
Bandwidth Limit per Station
Client Number Limit	Per radio, Per SSID
Connection Time Control
WMM
Security Mode	WPA2, WPA2/WPA, WPA, WEP, None
Authentication	Personal, Enterprise
WPS	PIN, PBC
Hidden SSIDs
MAC Address Filter	Up to 64 entries
Wireless Client Isolation
Mobile Device Management
RADIUS Proxy	PEAP, EAP-TLS
DHCP Client
Static IP
MAC Clone
802.1q VLAN
iOS Keep Alive
Schedule	Auto-Reboot, Wi-Fi Up/Down, LED On/Off
Local Service	HTTP, HTTPS, Telnet
Configuration	Stand Alone, TR-069 (VigorACS), VigorRouter APM, VigorConnect, VigorAP Mesh Root
Firmware Upgrade	HTTP, TFTP, TR-069
Tools	Speed Test, AP Discovery, Statistics, Interference Monitor
Notification Alert	E-mail
SNMP	v2, v2c, v3
Syslog
Managed by VigorConnect
Managed by VigorACS
Environment	Indoor
Mounting	Wall Plug
Power Supply	AC 100-240V @ 0.25A
Max. Power Consumption	10.7 watts
Dimension (W x H x D)	59mm x 91mm x 40mm (Power plug not included)
Weight	130 g
Operating Temperature	0 to 40°C
Storage Temperature	-20 to 60°C
Operating Humidity	10 to 90% non-condensing
Certificate
