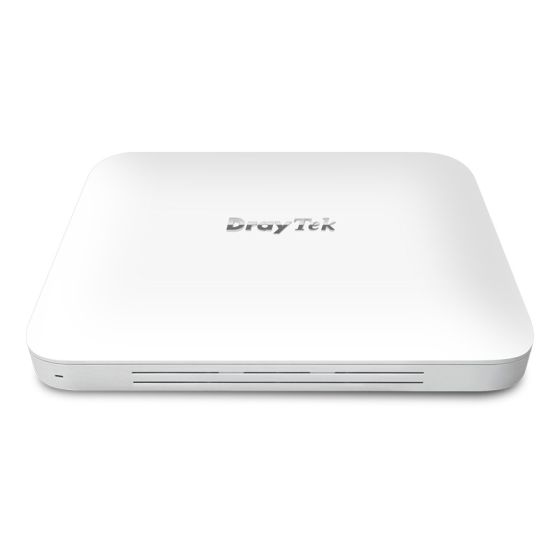

DrayTek Access Point รุ่น VigorAP 1000C

- VigorAP 1000C เป็นจุดเชื่อมต่อแบบไตรแบนด์ระดับธุรกิจที่มีวิทยุ 2.4GHz เดี่ยวและวิทยุ 5GHz คู่ให้ความเร็วสูงสุด 2.2 Gbps

ข้อมูลทางเทคนิค

LAN Port	2x 10/100/1000M Base-T, RJ-45 (PoE-PD Support on Port 1)
USB Port	1x USB2.0 Type A
Antenna	2x Internal PiFA 2.4G Antenna, 4x Internal PiFA 5G Antenna Gain: 2 dBi for 5GHz, 1 dBi for 2.4GHz
Indicator	4x LED 1x Internal Buzzer
Button	1x Factory Reset Button
DC Power Jack	1
Security Lock	1
2.4GHz Peak Speed	400 Mbps
5GHz Peak Speed	867 Mbps
5GHz-2 Peak Speed	867 Mbps
Max. Number of Concurrent Active Clients	384 (128 per radio band)
2.4GHz Standard	IEEE 802.11b/g/n 2x2 MIMO
5GHz Standard	IEEE 802.11a/n/ac Wave 2 2x2 MU-MIMO
Operating Mode	AP, Mesh Root, Mesh Node, Range Extender
Roaming	AP-Assisted Roaming, PMK-Caching, Pre-Authentication
AirTime Fairness
Band Steering
Auto Channel Selection
Max. Number of SSID	12 (4 per radio band)
WDS
Bandwidth Limit per Station
Client Numer Limit	Per radio, Per SSID
Connection Time Control
WMM
Security Mode	WPA3, WPA3/WPA2, WPA2, WPA2/WPA, OWE, WPA, WEP, None
Authentication	Personal, Enterprise
WPS	PIN, PBC
Hidden SSIDs
MAC Address Filter	Up to 384 entries
Wireless Client Isolation
Mobile Device Management
Built-in RADIUS Server
RADIUS Proxy	PEAP, EAP-TLS
DHCP	DHCP Server, DHCP, Client, DHCP Relay Agent
Static IP
MAC Clone
802.1q VLAN
iOS Keep Alive
Schedule	Auto-Reboot, Wi-Fi Up/Down, LED On/Off, Sound Buzzer
Local Service	HTTP, HTTPS, Telnet
Configuration	Stand Alone, TR-069 (VigorACS), VigorRouter APM, VigorAP Mesh Root
Firmware Upgrade	HTTP, TFTP, TR-069
Tools	Speed Test, AP Discovery, Statistics, Interference Monitor, Where Am I
Configuration Backup and Restore
Syslog
Mail Alert
SNMP	v1, v2c, v3
Managed by VigorConnect
Managed by VigorACS
Environment	Indoor
Mounting	Ceiling Mount, Wall Mount
Power Method	DC 12V @ 2A / 802.3af/at PoE
Max. Power Consumption	19.2 watts
Dimension	176 mm x 176 mm x 30 mm
Weight	460 g
Operating Temperature	0 to 45°C
Storage Temperature	-25 to 70°C
Operating Humidity	10 to 90% non-condensing
Certificate
