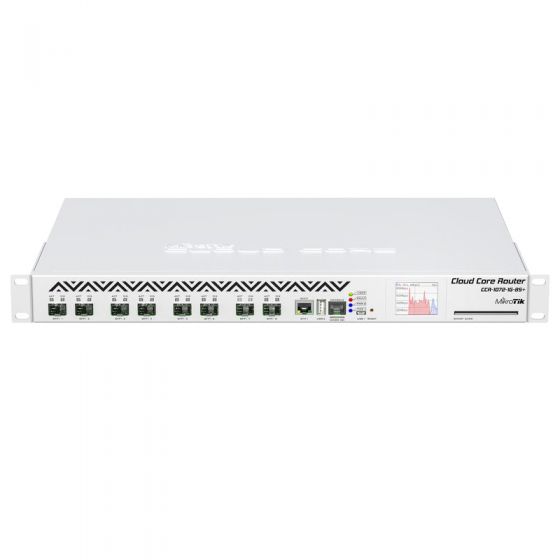

Mikrotik Router BOARD รุ่น CCR1072-1G-8S+
รายละเอียดโดยย่อ
- CCR1072-1G-8S+
CCR1072-1G-8S+
- CCR1072-1G-8S+ มี Gigabit Ethernet(10/100/1000) 1 พอร์ท และ SFP 10GB 8 พอร์ท
- ตัวอุปกรณ์รองรับการทำงานหนักเหมาะสำหรับระบบเครือข่ายขนาดใหญ่ มี RAM 16GB
- รองรับการทำงานหนักอย่างเช่น MPLS, BGP, PPPoE Server, Firewall, Load Balancing, Cache, Log, หรือเก็บ Auto Script ต่างๆ ระบบไฟฟ้ามี Power Supply แบบ redundant จำนวน 2 ตัว พร้อม Port Smart Card , USB , Micro USB , Micro SD ครบถ้วน
ข้อมูลทางเทคนิค
| Product code | CCR1072-1G-8S+ |
| Architecture | TILE |
| CPU | TLR4-07280 |
| CPU core count | 72 |
| CPU nominal frequency | 1 GHz |
| Dimensions | 443x315x44 mm. |
| License level | 6 |
| Operating System | RouterOS |
| Size of RAM | 16 GB |
| Storage size | 128 MB |
| Storage type | NAND |
| Tested ambient temperature | -20°C to 60°C |
| Suggested price | $3050.00 |
| Number of AC inputs | 2 |
| AC input range | 100-240 |
| Max power consumption | 125 W |
| 10/100/1000 Ethernet ports | 1 |
| SFP+ ports | 8 |
| Memory card type | microSD, 2x M.2 |
| Memory Cards | 3 |
| Serial port | RJ45 |
| Number of USB ports | 2 |
| USB Power Reset | Yes |
| USB slot type | microUSB type AB; USB type A |
| Max USB current (A) | 1 |
| Smart card slot | Yes |
| CPU temperature monitor | Yes |
| Current Monitor | Yes |
| PCB temperature monitor | Yes |
| Voltage Monitor | Yes |
Ethernet test results
| CCR1072-1G-8S+ | Tile 72 Core (1200Mhz, DDR1333) Max possible throughput | ||||||
| Mode | Configuration | 1518 byte | 512 byte | 64 byte | |||
| kpps | Mbps | kpps | Mbps | kpps | Mbps | ||
| Bridging | none (fast path) | 6,502.0 | 78,960.3 | 18,790.0 | 76,963.8 | 119,047.6 | 60,952.4 |
| Bridging | 25 bridge filter rules | 6,130.5 | 74,448.8 | 8,192.7 | 33,557.3 | 10,339.5 | 5,293.8 |
| Routing | none (fast path) | 6,502.0 | 78,960.3 | 18,790.0 | 76,963.8 | 86,507.0 | 44,291.6 |
| Routing | 25 simple queues | 6,502.0 | 78,960.3 | 12,370.4 | 50,669.2 | 13,474.2 | 6,898.8 |
| Routing | 25 ip filter rules | 4,667.6 | 56,683.3 | 5,985.1 | 24,515.0 | 5,873.8 | 3,007.4 |
| CCR1072-1G-8S+ | Tile 72 Core (1200Mhz, DDR1600) Max possible throughput | ||||||
| Mode | Configuration | 1518 byte | 512 byte | 64 byte | |||
| kpps | Mbps | kpps | Mbps | kpps | Mbps | ||
| Bridging | none (fast path) | 6,502.0 | 78,960.3 | 18,790.0 | 76,963.8 | 119,047.6 | 60,952.4 |
| Bridging | 25 bridge filter rules | 6,502.0 | 78,960.3 | 9,099.2 | 37,270.3 | 10,432.3 | 5,341.3 |
| Routing | none (fast path) | 6,502.0 | 78,960.3 | 18,790.0 | 76,963.8 | 94,668.4 | 48,470.2 |
| Routing | 25 simple queues | 6,502.0 | 78,960.3 | 13,500.0 | 55,296.0 | 13,683.5 | 7,006.0 |
| Routing | 25 ip filter rules | 5,247.6 | 63,726.9 | 6,125.5 | 25,090.0 | 6,104.0 | 3,125.2 |
| CCR1072-1G-8S+ | Tile 72 Core (1000Mhz, DDR1333) Max possible throughput | ||||||
| Mode | Configuration | 1518 byte | 512 byte | 64 byte | |||
| kpps | Mbps | kpps | Mbps | kpps | Mbps | ||
| Bridging | none (fast path) | 6,502.0 | 78,960.3 | 18,790.0 | 76,963.8 | 98,801.0 | 50,586.1 |
| Bridging | 25 bridge filter rules | 5,033.3 | 61,124.4 | 7,149.8 | 29,285.6 | 8,682.1 | 4,445.2 |
| Routing | none (fast path) | 6,502.0 | 78,960.3 | 18,790.0 | 76,963.8 | 73,061.0 | 37,407.2 |
| Routing | 25 simple queues | 6,502.0 | 78,960.3 | 10,980.3 | 44,975.3 | 11,368.2 | 5,820.5 |
| Routing | 25 ip filter rules | 4,125.6 | 50,101.3 | 5,051.5 | 20,690.9 | 4,999.0 | 2,559.5 |
| CCR1072-1G-8S+ | Tile 72 Core (1000Mhz, DDR1600) Max possible throughput | ||||||
| Mode | Configuration | 1518 byte | 512 byte | 64 byte | |||
| kpps | Mbps | kpps | Mbps | kpps | Mbps | ||
| Bridging | none (fast path) | 6,502.0 | 78,960.3 | 18,790.0 | 76,963.8 | 98,873.5 | 50,623.2 |
| Bridging | 25 bridge filter rules | 5,764.8 | 70,007.7 | 8,240.2 | 33,751.9 | 8,866.3 | 4,539.5 |
| Routing | none (fast path) | 6,502.0 | 78,960.3 | 18,790.0 | 76,963.8 | 76,201.0 | 39,014.9 |
| Routing | 25 simple queues | 6,502.0 | 78,960.3 | 11,073.5 | 45,357.1 | 11,444.4 | 5,859.5 |
| Routing | 25 ip filter rules | 4,664.7 | 56,648.1 | 5,200.3 | 21,300.4 | 5,321.0 | 2,724.4 |
IPsec test results
| CCR1072-1G-8S+ | CCR1072-1G-8S+ IPsec throughput | ||||||
| Mode | Configuration | 1400 byte | 512 byte | 64 byte | |||
| kpps | Mbps | kpps | Mbps | kpps | Mbps | ||
| Single tunnel | AES-128-CBC + SHA1 | 112.5 | 1260.0 | 112.6 | 461.2 | 115.4 | 59.1 |
| 256 tunnels | AES-128-CBC + SHA1 | 970.8 | 10873.0 | 1096.5 | 4491.3 | 1190.5 | 609.5 |
| 256 tunnels | AES-128-CBC + SHA256 | 906.1 | 10148.3 | 1082.8 | 4435.1 | 1163.0 | 595.5 |
| 256 tunnels | AES-256-CBC + SHA1 | 904.4 | 10129.3 | 1051.0 | 4304.9 | 1190.5 | 609.5 |
| 256 tunnels | AES-256-CBC + SHA256 | 895.9 | 10034.1 | 1078.3 | 4416.7 | 1135.5 | 581.4 |
